STORM-12

storm-12

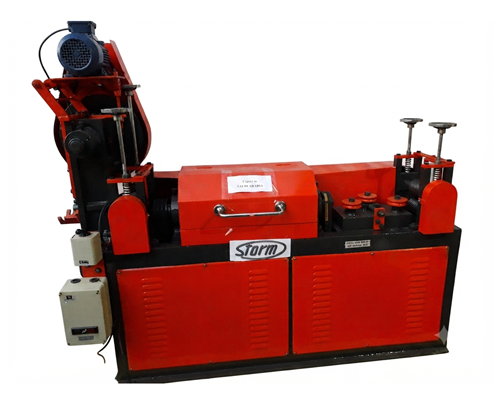

Storm-12 Wire straightening cum cutting off machine Storm-12, Special unique design for cutting and straightening 4mm to 12mm mild steel, Stainless steel, Copper, Brass and Aluminum wire. It is a heavy duty machine to fill the gap of 10 to 13mm Wire straightening cutting machines. Main reason to develop this model is to serve the customer demand of less than half inch wire cutting & straightening requirement by cost effective & high performance machine. They are widely used in Industries concerned with Manufacturing of Fasteners, Steel furniture, Locks, R.C.C Pipes, Kitchen wares, Spring makers, "U" bolts, "J" Hooks, Bright Bars , Fan Shafts, Auto parts, Scooter Accessories, Ribbed / TMT Wires and many more.

FEATURES:

Fast Feeding & Straightening speed can be 20m per min
Double set of feed rollers for smooth feeding
One set of 3pcs Pre-straightener rollers
High speed rotating spinner for getting exact straight wire
Heavy Duty Machines
Built on rigid heavy duty Fabricated Steel Frame
Low Maintenance with High Productivity
Cutting tools is a simple design, easy to adjust and change
Quickly & easily adjustable dies in spinner

specifications:

MODEL	STORM-12
In Thickness of Wire mm	4mm to 12mm
In Length of Wire to be cut automatically mm	50 to 1000 mm Length can be increased as per requirement.
Feeding Capacity per Min.	60′ feet
Power of Motor H. P	10 H.P & 1 H.P.
Required R. P. M	1440
Approx Weight in Kg. Net / Gross	1000 Kg.
Floor Space Required	60″ x 22″

applications:

Threaded Bars

Shopping Trolley

"J" Hooks

RCC Pipes

Fasteners

Kitchen Wares
