storm-14 & 15

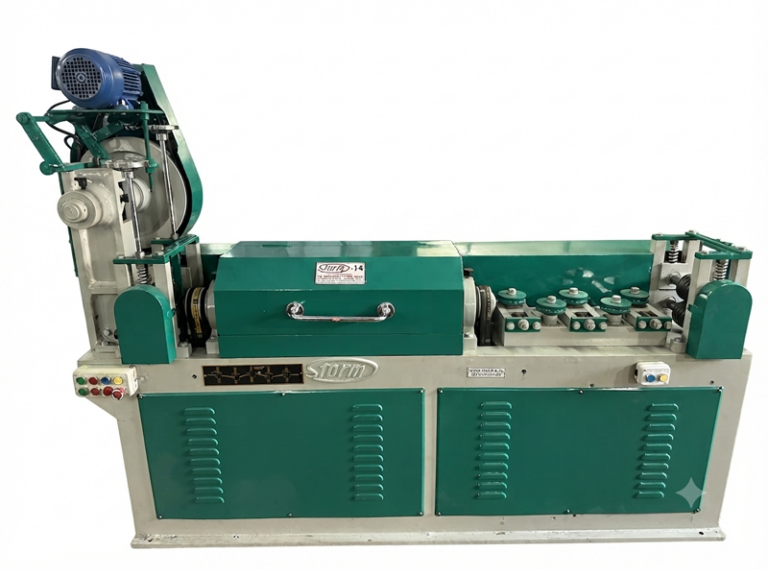

Storm 14 & 15 Wire Straightening and Cutting Machine Storm 14 & 15, is a heavy duty, high performance & premium grade machine. Suitable for straightening 5 mm to 14 mm mild steel, Stainless steel, Copper, Brass, TMT & Ribbed wire. Storm 14 & 15 machine is provided with two set of feed rollers for smooth wire feeding and in straightening section, one high speed heavy duty spinner with six station straightening dies and one set of (three nos.) horizontal pre-straightening rolls and Wire Straightening and Cutting Machine Storm 14 machine is provided with three set of feed rollers for smooth wire feeding and in straightening section, one high speed heavy duty spinner with six station straightening dies and one set of (five nos.) horizontal straightening rolls. It helps to reduce sharp bend of wire coil to facilitate straightening quality & smooth feeding. Some applications includes Manufacturing of Fasteners, Steel furniture, Locks, R.C.C Pipes, Kitchen wares, Spring making, "U" bolts, "J" Hooks, Bright Bars , Auto parts, Scooter Accessories, Ribbed / TMT Wires.
FEATURES:
- Fast Feeding & Straightening speed can be 20mtr per min
- Double set of feed rollers for smooth feeding
- One set of 3pcs Pre-straightener rollers
- High speed rotating spinner for getting exact straight wire
- Heavy Duty Machines
- Built on rigid heavy duty Fabricated Steel Frame
- Low Maintenance with High Productivity
- Cutting tools is a simple design, easy to adjust and change
- Quickly & easily adjustable dies in spinner
specifications:
| MODEL | STORM-14 | STORM-15 |
| In Thickness of Wire mm | 7mm to 14 mm | 7mm to15 mm |
|---|---|---|
| In Length of Wire to be cut automatically mm |
50 to 1000 mm Length can be increased as per requirement. |
50 to 1000 mm Length can be increased as per requirement. |
| Feeding Capacity per Min. |
60′ feet | 60′ feet |
| Power of Motor H. P | 2 H.P. + 15 H.P. | 20 H.P. + 2 H.P. |
| Required R. P. M | 1440 | 1440 |
| Approx Weight in Kg. Net / Gross |
1300 | 1500 |
| Floor Space required | 91″ x 22″ | 105″ x 24″ |
applications:
TMT Bars
"U" Bolts
"J" Hooks
RCC Pipes
Spring Steel Wire
