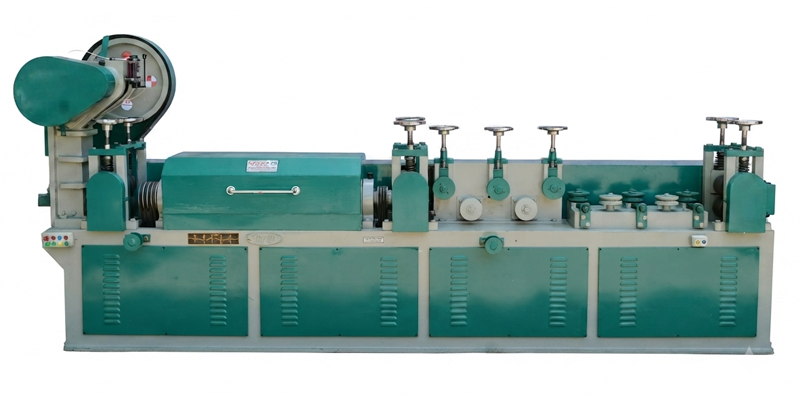

Storm-25 Heavy Duty Wire Straightener and Cutter Machine Storm is robust design for heavy wire industry. The wire is pulled through by four pairs of driven feed rolls and straightened by a rotating spinner. This machine is provided with Pre-straightener rollers in front of first feeder. It helps to reduce sharp bend of wire coil to facilitate straightening quality & smooth feeding. Suitable for straightening 15mm to 25mm mild steel, Stainless steel, Copper, Brass, TMT & Ribbed wire. Some applications includes Manufacturing of Fasteners, Steel furniture, "U" bolts, Bright Bars , Auto parts, Ribbed / TMT Wires.
FEATURES:
- Four sets of feed rollers for smooth feeding
- Pre-straightener rollers
- Heavy Duty Machines
- Built on rigid Steel Fabricated Frame
- Low Maintenance with High Productivity
- Cutting tools is a simple construction, easy to adjust and change
- Quickly and easily adjustable dies in spinner
specifications:
MODEL | STORM-25 |
| In Thickness of Wire | 15 to 25 mm |
| In Length of wire to be cut automatically | 100 to 3000 mm Length increased as per requirement |
| Feeding capacity per min. | 40′ feet |
| Power or motor H.P. | 40 H.P. & 5 H.P. |
| Required R.P.M. | 1440 |
| Approx. Weight in Kg. | 3500 |
| Floor space required | 180″ x 36″ |
applications:
Coil Bar
Threaded Bars
Bright Bars
